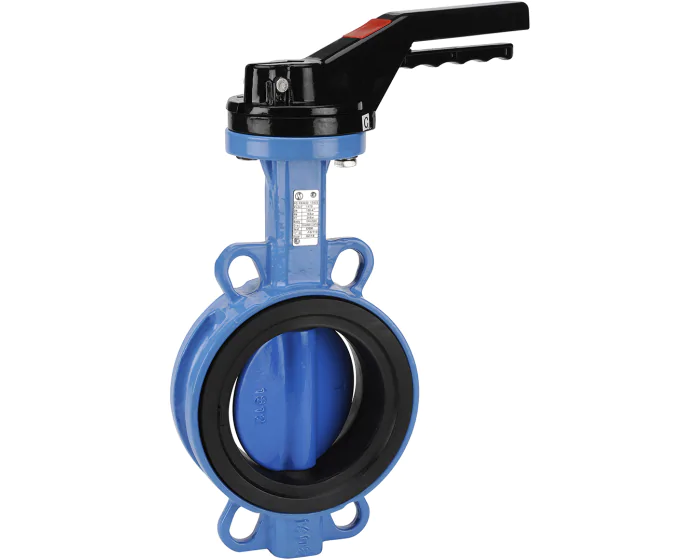

The 1170 series butterfly valve, with ductile iron body and disc and EPDM seat, ACS certified, 9 position handle, actuation for cold, hot and drinking water
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/2 |
| Option certificate 3.1 | Yes |
| DN metric | 40/49 |
| Construction standard | BS 5155 |
| CE risk category | III Module H |
| Type of paint | Epoxy |
| Paint coating thickness (µm) | 250 |
| EN face-to-face standard | EN 558 Series 20 |
| DIN face-to-face standard | DIN 3202 Part.3 Series K1 |
| ISO face-to-face standard | ISO 5752 Series 20 |
| Tightness test standard | EN 12266-1 Rate A |
| Type of seat | Removable |
| Notch plate | Yes |
| Opening device | Handle |
| Application | Air conditioning / Heating |
| Shaft/stem matérial | Stainless steel AISI 416 |
| Lockable | Yes |
| Square, star (mm) | Square 9 mm |
| Torque (Nm) | 11 |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 33.0 |
| Fluid | Hot water / Cold water / Drinking water / Compressed air / Domestic fuel |
| Kv (m³/h) | 36.0 |
| Seat | EPDM |
| Body material | Ductile iron |
| Disc material | Cast iron EN GJS-400-15 |
| ISO pad 5211 | F07 |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| TS max (°C) | 110 |
| TS min (°C) | -10 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Through shaft | Yes |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Aluminium |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 Handle | 1170040 | S1009167 |
€28.31
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' Handle | 1170050 | S1009168 |
€32.84
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 Handle | 1170065 | S1009169 |
€37.37
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' Handle | 1170080 | S1009170 |
€46.37
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' Handle | 1170100 | S1009171 |
€59.90
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' Handle | 1170125 | S1009172 |
€79.34
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' Handle | 1170150 | S1009173 |
€95.64
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' Handle | 1170200 | S1009174 |
€143.94
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10'' Handle | 1170250 | S1009175 |
€201.83
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN300 - 12'' Handle | 1170300 | S1009176 |
€287.90
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN350 - 14'' Gears | 1170350 | S1009177 |
€422.89
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN400 - 16'' Gears | 1170400 | S1009178 |
€868.51
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN450 - 18'' Gears | 1170450 | S1009179 |
€1,004.73
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN500 - 20'' Gears | 1170500 | S1009180 |
€1,262.20
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN600 - 24'' Gears | 1170600 | S1009181 |
€2,347.59
(excl. btw)
|
add to cart |
